Prize catch beneath the waves: What Iran actually gained from the capture of US submarine drone

By Mohammad Molaei

In the early hours of September 8, 2026, in the waters at the entrance to the Strait of Hormuz, naval forces of the Islamic Revolution Guards Corps (IRGC) tracked, intercepted, and recovered one of the United States Navy's most advanced unmanned undersea platforms.

Media reports identified the vessel as an Anduril DIVE-LD, a large-diameter autonomous underwater vehicle delivered to the US Navy's Unmanned Undersea Vehicle Group One only a year earlier.

Washington has yet to confirm the seizure, although a US military source has acknowledged in media reports that an American underwater drone suffered a “malfunction” in the area, an admission that, at least, confirms the Iranian account without any shade of doubt.

The IRGC's own description of the operation, carried in a statement issued on Tuesday evening, called the recovery a "complex intelligence and field operation,".

"One of the US military's most advanced unmanned underwater vehicles was seized by Iranian armed forces at the entrance to the Strait of Hormuz," the IRGC Navy said, adding that photographic and video evidence of the captured system would be released.

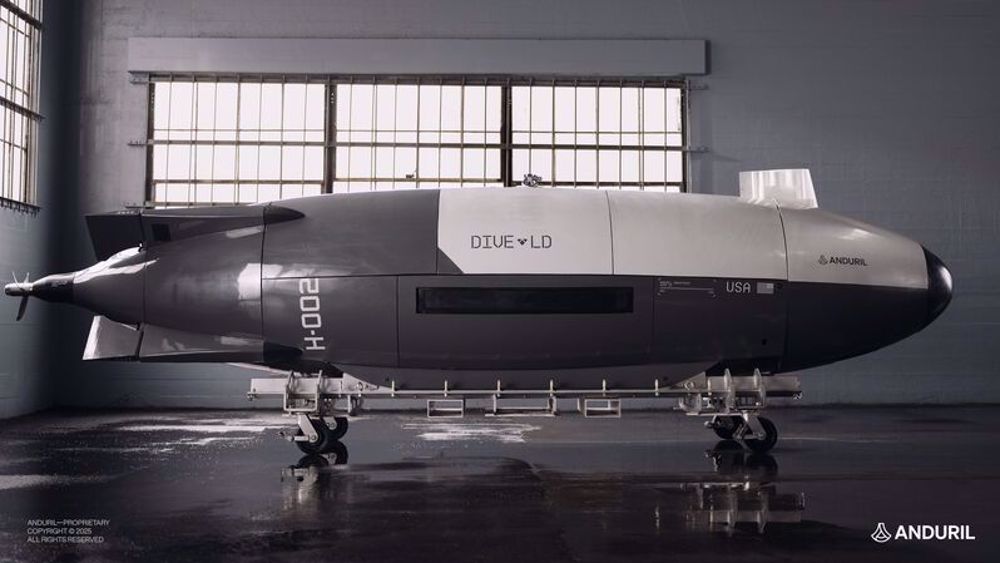

Images subsequently released showed a partially submerged, cylindrical gray-and-white hull bearing Anduril markings and US Navy serial identifiers consistent with the platform's known design.

Anatomy of a large-diameter UUV: engineering the DIVE-LD

To understand what has fallen into Iranian hands, it is necessary to understand what a platform in this class actually is at the engineering level, not as a black box, but as an integrated system of pressure structures, energy storage, navigation, and sensing that together allow a three-metric-ton unmanned vehicle to operate independently at abyssal depths for over a week at a time.

Pressure hull and structural design

The DIVE-LD's 5.8-meter, 1.2-meter-diameter hull is rated to a depth of 6,000 meters, a design requirement that places it firmly in the "full ocean depth capable" tier of large-diameter UUVs, comparable in operating envelope to deep-submergence research vehicles rather than typical littoral mine-hunting drones, which rarely exceed a few hundred meters of rated depth.

At 6,000 meters, ambient pressure exceeds 600 atmospheres, or roughly 8,800 pounds per square inch, a load that a cylindrical pressure vessel of this diameter can only survive through a combination of hull material selection and geometric design.

Large-diameter UUVs at this depth class are typically built around either high-strength titanium alloy (commonly Ti-6Al-4V) pressure sections for the electronics and battery bays, or syntactic foam buoyancy modules bonded to the primary pressure hull to offset the weight of the heavier structural sections.

Titanium's strength-to-weight ratio and corrosion resistance in seawater make it the standard choice for the load-bearing sections of a vehicle in this class, while non-pressurized external fairings, the outer hydrodynamic shell visible in the recovered vessel's photographs, are typically composite or reinforced polymer, designed purely for hydrodynamic efficiency rather than pressure resistance, since they are free-flooding and equalize with ambient sea pressure rather than sealing it out.

Propulsion and control

Anduril has specifically stated that the DIVE-LD uses direct-drive electric propulsion, meaning the propulsor (whether an open propeller or a ducted pump-jet configuration, standard practice for reducing cavitation noise and improving efficiency at the vehicle's cruise speed) is coupled directly to an electric motor without an intervening gearbox.

This is a deliberate acoustic-signature design choice: gear meshing is a persistent source of tonal noise in underwater propulsion, and eliminating that mechanical stage reduces the vehicle's detectability by passive sonar arrays, a critical requirement for a platform intended to operate covertly in waters as heavily monitored as the Strait of Hormuz.

Vehicle attitude and depth control in a UUV of this class are typically managed through a combination of control surfaces (fins or planes at the stern, sometimes bow planes as well) for dynamic maneuvering, and a variable buoyancy system, a piston- or bladder-based mechanism that adjusts the vehicle's net buoyancy by displacing a small volume of oil or seawater, for fine depth-holding and station-keeping without expending propulsive energy, particularly valuable during extended loiter phases of an ISR or hydrographic mission.

Energy architecture

Sustaining fully autonomous operation for up to 10 days without surfacing, at the power draw required to run propulsion, navigation processing, and active sensor payloads, demands an energy-dense storage solution.

UUVs in this displacement and endurance class typically rely on lithium-ion or lithium-polymer battery banks housed in a dedicated pressure-tolerant section, sized to balance total energy capacity against the weight and volume penalty batteries impose on a vehicle that must also remain neutrally buoyant.

The specific energy density and cell chemistry used in the DIVE-LD's battery module are not publicly disclosed by Anduril, but the vehicle's stated endurance figure, a full order of magnitude beyond the one-to-three-day endurance typical of smaller tactical UUVs, implies either an unusually large dedicated battery volume, a highly power-efficient sensor and processing suite, or, more likely, both in combination.

Navigation without GPS

A vehicle that spends the overwhelming majority of its mission fully submerged, often at depths where electromagnetic signals including GPS cannot penetrate, cannot rely on satellite positioning for the bulk of its transit. Large UUVs of this type instead depend on a combination of a strapdown inertial navigation system (INS), accelerometers and gyroscopes that continuously estimate position by integrating measured acceleration and rotation from a known starting point, fused with a Doppler Velocity Log (DVL), which bounces acoustic pulses off the seafloor to directly measure the vehicle's speed and drift relative to the bottom.

Because inertial navigation accumulates positional error over time (a phenomenon known as drift), the DVL fix is essential for maintaining navigational accuracy over the DIVE-LD's multi-day mission profile; where DVL bottom-lock is unavailable in deep mid-water columns, the system would fall back to inertial dead-reckoning alone, with periodic accuracy resets whenever the vehicle can obtain a GPS fix at the surface or a known acoustic beacon position.

Sensing and the IPOE/ISR/hydrographic payload set

The vehicle's modular payload architecture is the core of its military utility, and each of the mission profiles Anduril advertises for it- Intelligence Preparation of the Operational Environment, ISR, mine warfare, and precision underwater object placement- maps to a specific sensor configuration.

Hydrographic and seabed-mapping functions rely on synthetic aperture sonar (SAS) or high-resolution side-scan sonar, which construct detailed acoustic imagery of the seafloor and any objects resting on it by processing the return signal from a moving transducer array, a technique that achieves far higher resolution than a simple echo sounder and is the standard tool for both charting and mine-hunting in modern naval UUVs.

ISR configurations would typically add passive acoustic sensors for detecting and classifying nearby vessel signatures, while the "precision placement" mission mode implies a mechanical payload bay capable of releasing an object, a sensor, beacon, or other equipment, at a GPS- or acoustically referenced location with a high degree of positional accuracy, a non-trivial engineering requirement given that the vehicle itself is navigating without continuous GPS.

Communications

Submerged acoustic modems, which are inherently low-bandwidth and short-range compared to radio communication, are the standard means by which a UUV can report limited status data or receive updated instructions while still submerged; full data offload and detailed mission reprogramming typically require the vehicle to surface and establish a satellite or radio-frequency link.

This communications architecture is itself operationally relevant to the circumstances of the capture: a UUV that has surfaced, or is operating near the surface to establish a communications link, is markedly more vulnerable to visual and radar detection than one loitering at operational depth, a window during which an intercepting force would have its best opportunity to physically locate and recover the vehicle before it can dive again.

Why an intact capture matters more than a wreck

An intact vehicle allows direct physical examination of the pressure hull's material composition and machining tolerances; disassembly of the battery module to determine cell chemistry, packaging, and achieved energy density; extraction of the propulsion motor and control-surface actuators to study their specific engineering solutions for noise reduction; and most valuable of all, if the vehicle's data storage and onboard processing hardware were not remotely wiped, physically destroyed, or protected by tamper-resistant self-destruct mechanisms prior to capture, potential access to the autonomy software, navigation algorithms, and mission-planning logic that govern how the vehicle behaves without human control in real time.

Critically, the onboard memory is also believed to contain high-resolution bathymetric data, detailed topographical maps of the seabed collected during the vehicle's mission.

While Iran already possesses comprehensive topographic charts of the Strait of Hormuz on its own side, the DIVE-LD's captured data is understood to include bathymetric surveys of the Omani side of the strait, the deep-water approaches and underwater terrain that Iran has historically had far less visibility over.

Access to this data would provide Iranian naval strategists with an unprecedented understanding of the seabed contours, underwater obstacles, and depth profiles on the opposite side of the strait.

For a country actively developing its own indigenous unmanned underwater vehicle programs, each of these subsystems represents years of independent research and development that a single successful reverse-engineering effort could meaningfully compress, not by producing an identical copy overnight, but by revealing design solutions, materials choices, and engineering approaches to problems (deep-depth pressure tolerance, acoustic-signature reduction, long-endurance power management, non-GPS navigation accuracy) that Iranian naval engineers would otherwise have had to solve independently through years of trial and error.

A test of American undersea posture in Persian Gulf

Beyond the platform itself, the loss carries a broader significance for how the episode is read militarily. The US Navy has invested heavily in unmanned undersea and surface systems specifically because they allow persistent monitoring of waters, including chokepoints like the Strait of Hormuz, without exposing crewed vessels or personnel to risk.

A platform built around that premise being tracked, intercepted, and recovered by the other side undermines the central operational assumption behind its deployment: that an autonomous, uncrewed system operating in regional waters carries no meaningful risk of falling.

Independent military think tanks covering the incident have noted that, if Washington eventually confirms the loss in full, the episode could expose real vulnerabilities in American launch-and-recovery procedures, mission-monitoring protocols, communications resilience, and, perhaps most significantly, the absence or failure of emergency self-destruct or data-scuttling mechanisms meant to prevent exactly this kind of capture.

Whether or not the American side acknowledges what happened, the underlying reality is one Washington cannot easily dismiss: a multi-million-dollar, next-generation American undersea asset is now, by the country's own military's admission of a "malfunction" in the area, no longer under US control, and is in Iranian hands to study at leisure.
